Induction & Vacum Casting Machine

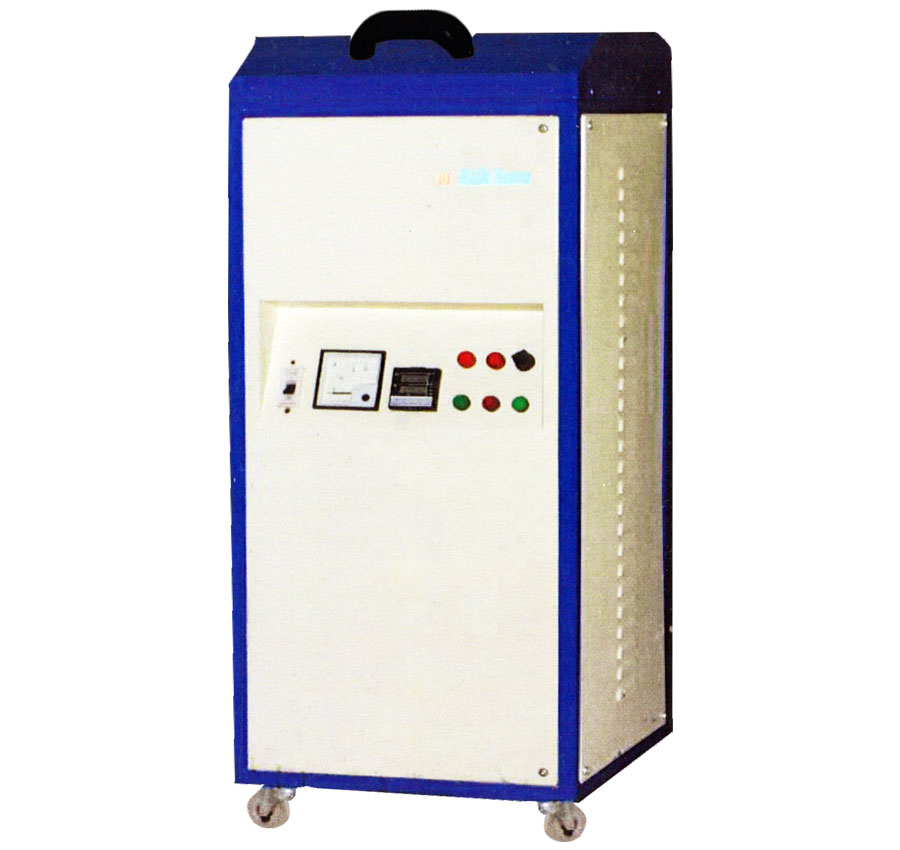

INDUCTION MELTER

  • We have developed Induction Melting Machines for use of precious metal melting.
  • We used latest IGBT technology for longer operating life with high efficiency and metal melting performance.
  • This machine has a long working life, with minimizes maintenance and maximizes of production.
  • Maximum operation temperature upto1200°C It reduces melting losses due to faster melting time.
  • Induction Melter has automatic temperature controller to control specific temperature with the help of bottom touching spring mounted thermocouple.

We provide an indicator alarm for

  • a) Water failure
  • b) Over heating
  • c) No crucible

MODEL NO.
CAPACITY
POWER
SIZE
PHASE
IM 1 1 KG 3.5 K.W. 15”W X 15”D X 32”H SINGLE/ THREE
IM 2 2 KG 4.5 K.W 15”W X 15”D X 32”H SINGLE/ THREE
IM 3 3 KG 6 K. W. 20”W X 20”D X 32”H THREE
IM 5 5 KG 7.5 K. W. 22”W X 22”D X 32”H THREE

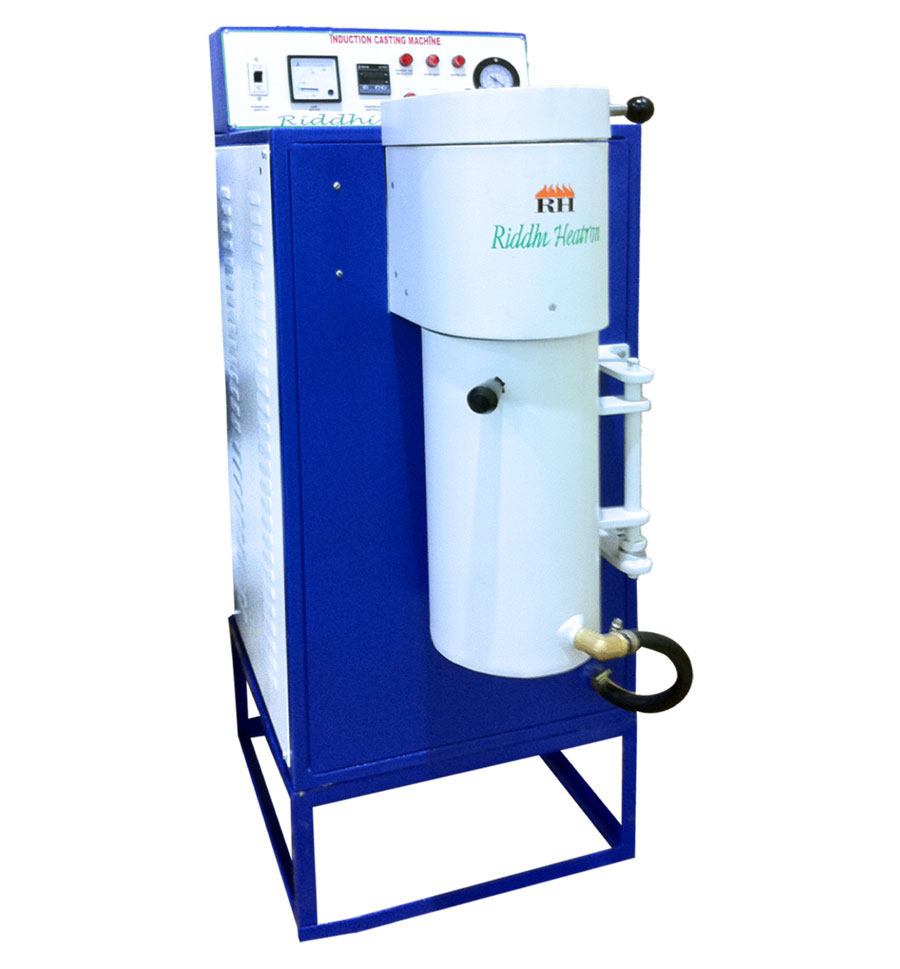

VACUUM CASTING MACHINE

  • Vacuum casting machine is based on Induction technology
  • This machine is top loading bottom pouring system.
  • With the high-pressure vacuum in close top cover for low oxidations possibilities in casting.
  • This machine is use for precious metal like Gold Casting, Silver Casting&Brass Casting, etc.
  • In this machine metal are melting 8 to 10 minutes
  • Maintenance cost of this machine is very low.
  • This machine work on three phase electric power.
  • Machine operating system is Semi-automatic. We can customize machine as per customer requirement.


Technical Specifications :
Capacity 1kg, 2kg
Flask Size Maximum 12” high with 4”
Dia Flange type Capacity :
Electrical Three phase with 6kw.



Riddhi Heatron specializes in the manufacturing of a wide range of high-quality industrial furnaces and casting machines. With a focus on innovation and reliability, we are dedicated to providing our customers with the best possible products to suit their specific needs.
